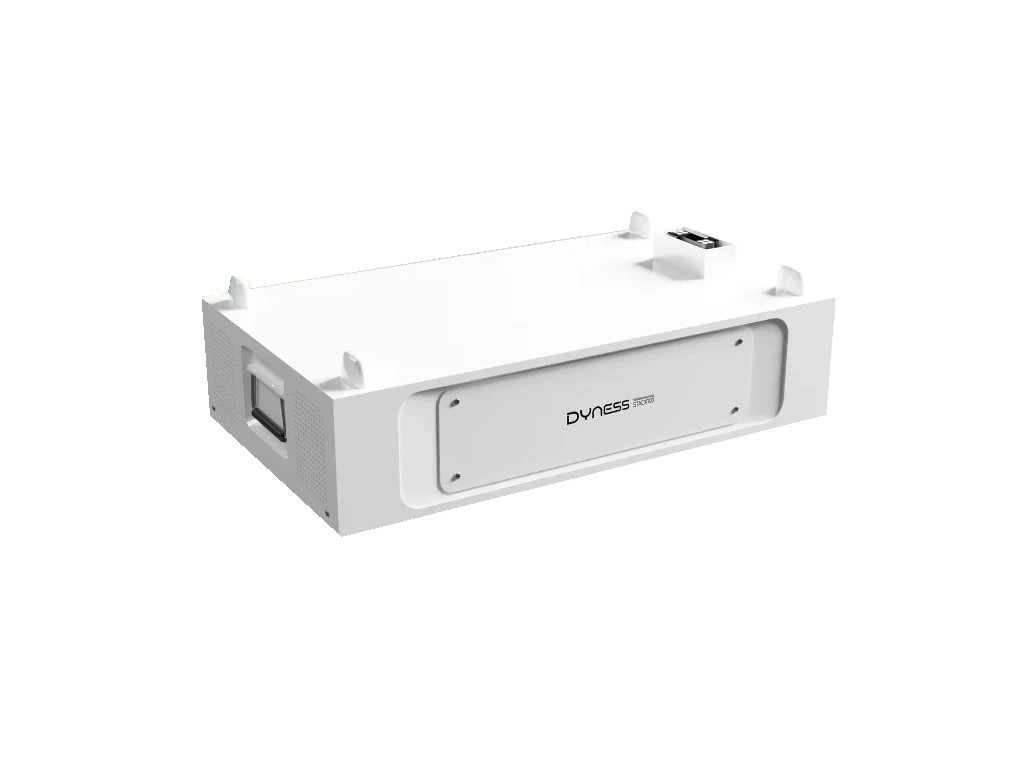

DYNESS S51100 STACK BATTERY MODULE – 5.12kWh

The DYNESS S51100 Stack Battery Module is a high-performance 5.12kWh (51.2V / 100Ah) lithium battery designed for use within the DYNESS STACK100 energy storage system. Built with advanced LiFePO4 (Lithium Iron Phosphate) technology, this DYNESS battery module delivers exceptional safety, long lifespan, and reliable performance for both residential and commercial & industrial (C&I) energy storage applications.

As part of the modular STACK100 system, the DYNESS S51100 allows for flexible and scalable energy storage. A single system can be configured from 15.36kWh up to 76.8kWh, with the ability to expand up to an impressive 921.6kWh through parallel connections, making it ideal for growing energy demands and large-scale installations.

High Performance Energy Storage

• 5.12kWh capacity per module (51.2V / 100Ah)
• 1C discharge capability for high power output
• ≥8000 cycles / 10-year lifespan for long-term reliability
• Built with LiFePO4 technology for enhanced safety and stability
• System capacity range: 15.36kWh – 76.8kWh

Advanced Safety Features

• Each battery pack includes an independent fire extinguishing device
• Stable and safe LiFePO4 battery chemistry
• Integrated air-cooling system for temperature control
• Designed for safe operation in demanding environments

Scalable & Flexible Design

• Modular stackable design for easy system expansion
• Expandable up to 921.6kWh in parallel
• Supports up to 12 clusters for large-scale energy storage
• Plug-and-play installation for quick setup
• Flexible layout suitable for various installation environments

Easy Installation & Integration

• Fast installation time (≤1 hour)
• Compact and stackable structure
• Seamless integration into STACK100 systems
• Ideal for both residential and commercial applications

Need more information? See DATASHEET
